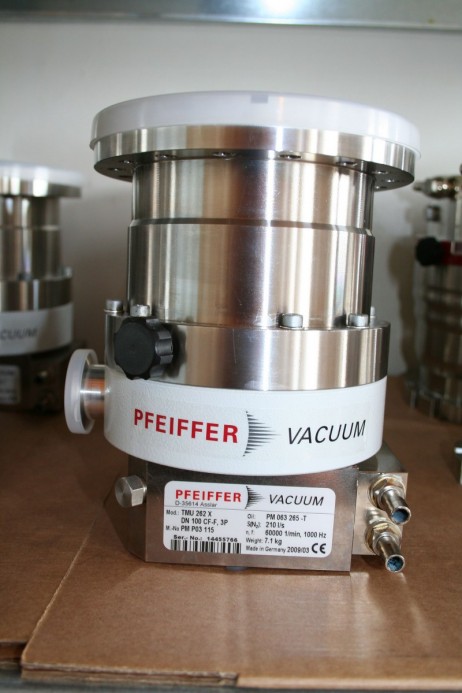

PFEIFFER TMU 262 TURBOMOLECULAR PUMP – DN100CF PMP02995 A

Product Description

We offer multiple Pfeiffer TMU 262 turbo pumps with DN100CF flange
(model codes PM P02 995 A and its identical PM P03 115).

It is coupled with the TC 100 Controller to form a complete unit. Air cooling or water cooling is required for this system. The TMU 262 has a wear free permanent magnetic bearing on the high vacuum side and oil lubricated ball bearing with ceramic balls on the fore-vacuum side. The TMU262 include the water cooling module which can be easily removed when desired in case of air cooling.

At a glance:

• Rugged design and proven bearing
• system offer maximum reliability
• Compact design makes for a minimum footprint
• Modular design makes for minimum configuration (subsequent expansion poses no problems)
• Maximum flexibility utilizing either an integrated drive system or external drive electronics
• Simple Plug & Play operation
• Extremely low vibration
• Minimum wear
• Mean time to failure > 200,000 hours

Fully factory refurbished. Available from stock and sold with warranty.

Download Pfeiffer TMU262 manual for detailed information.
